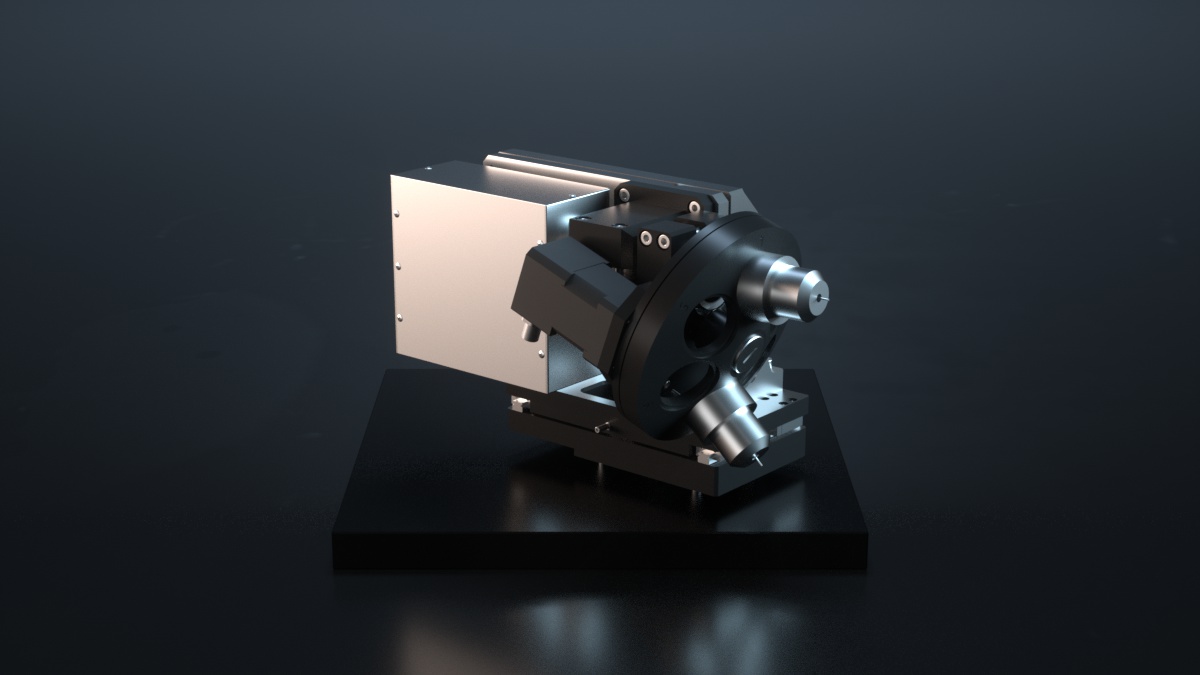

ILCENTRIC Set | Autocollimator

The autocollimator is used for measuring spherical and planar lenses with highest precision and great efficiency. Stacked lenses such as achromats or triplets can be characterized with the same set up. The specially designed unit for the ILCENTRIC series offers two wavelengths for measurement to guarantee sufficient signal quality also for coated optics. An automated objective exchange unit positions up to 6 different collimation lenses for fully automated processing. A compact design efficiently integrates into the machine structure.

The autocollimator functionality is fully covered by the ILCAM software package to program optical recipes, to analyze measurement data and to program mechanical dimensions.
