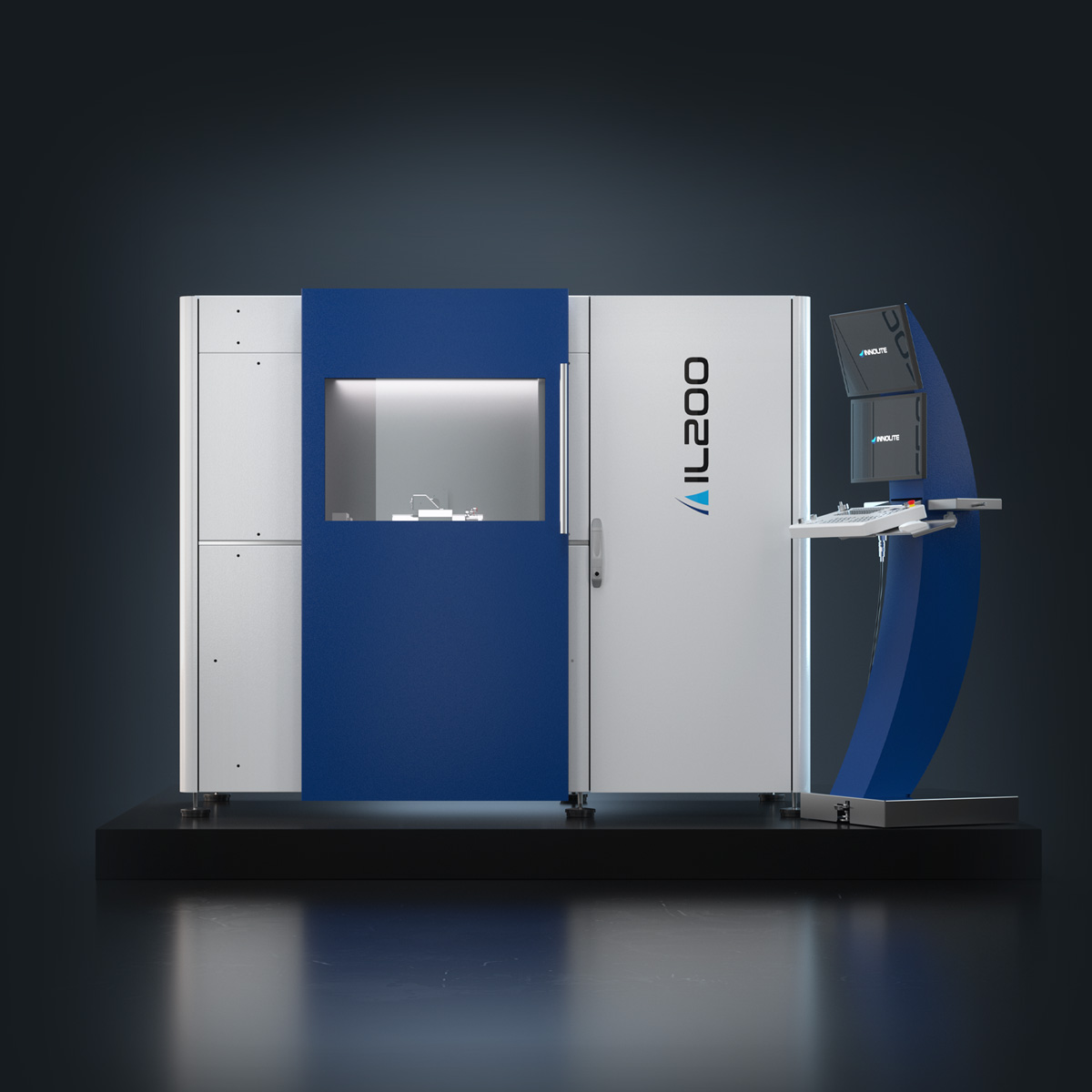

IL200
UP Lathe

dynamic. efficient. cost effective.

Consistent development of the Innolite machine technology to continuously increase precision have led to the new type of IL200. It’s a small compact and highly efficient machine for mold pins, ophthalmic products or any other ultra-high accuracy small parts. Due to its compact design with low Abbé errors we achieve sub-nanometer following errors in our linear axes and surface finishes as low as ​​< 0.5 nm. An integrated air conditioning systems as well as an active water and oil temperature and pressure control allow for long term stability and best repeatability. With our DirectDrive3D technology, the IL200 achieves unmatched freeform machining performance even without our overdrive axes.

Dive into the details:

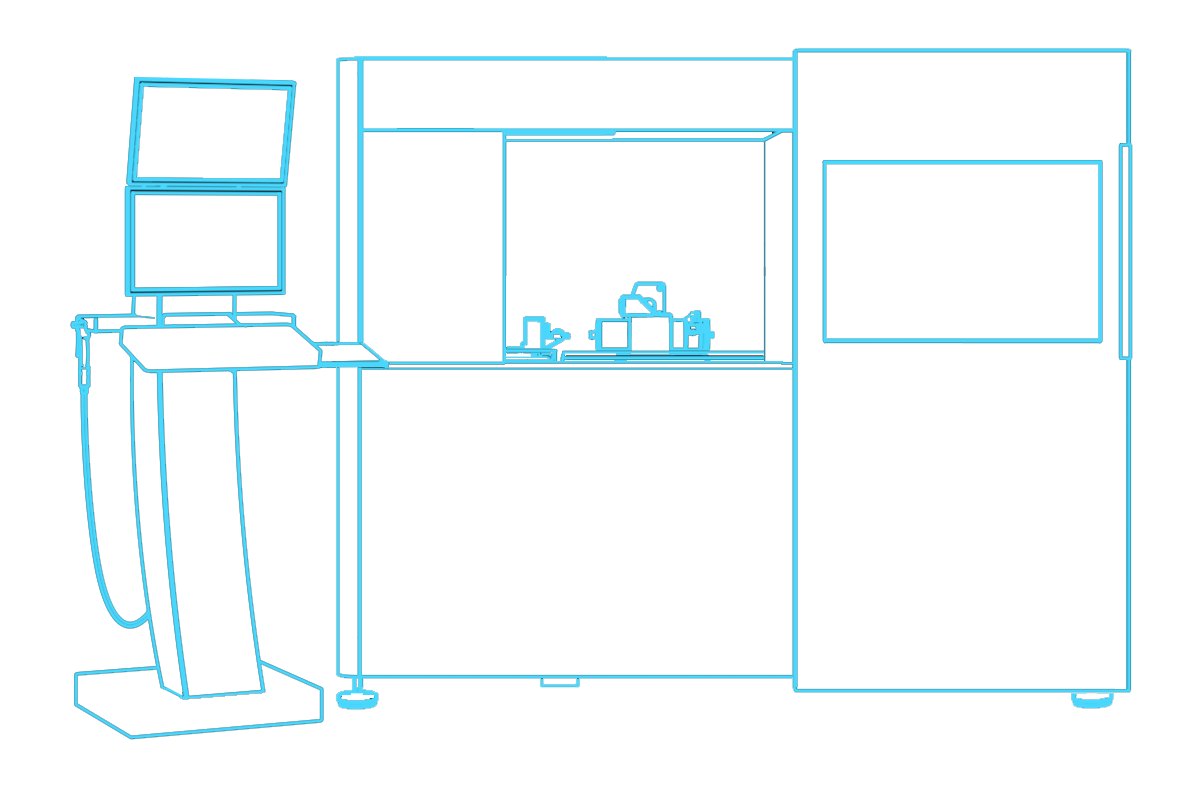

IL200 General
System Configuration
Ultra precision 3 axes (XZW) CNC high dynamic machining center
Machine Base
Natural granite base for excellent accuracy
Vibration Isolation
Self leveling pneumatic isolation system (option: passive or electronically controlled active leveling)
Control System
Beckhoff TwinCAT 3 CNC high performance machine controller; Intel® Core™ i5 CPU, 6 Cores; Microsoft Windows 10 IoT Enterprise; 23" color flat panel touch screen display and 24" color flat panel display; EtherCAT bus communication technology; Digital Servo drives with 100 kHz current & position control loop frequency
Programming Resolution
1 nm linear (0.01 nm optional), 0.0000001° rotary
Set Points [pts/sec]
Up to 2,000 in CNC mode; 10,000 in DirectDrive3D
File Transfer
USB, Ethernet
Requirements
Air: 7-10 bar, 300 l/min, 10 μm prefiltered; Electrical: 400 V, 16 A, 50/60 Hz; Water: 8-10 °C, 30 l/ min; Connectivity: Ethernet
Air shower (integ.)
Air conditioning unit with filtration, flow rate 600 l/min, temp. Constancy < 0.05 °C, control integration
Machine Size
2,520 * 1,120 * 2,020 (D * W * H)
Standalone Panel Size
610 * 610 mm (D * W)
Linear Axis / X-Axis; Z-Axis
Travel
200 mm
Feedback Type
Noncontact linear encoder
Resolution
0.03125 nm
Straightness
< +/- 0.2 μm
Pitch, Roll, Yaw
< +/- 2 arcsec for all
Max. Speed
8,000 mm/min
Drive System
Brushless linear motor
Static Stiffness
X: 380 N/μm vertical; Z: 420 N/μm vertical
Media Supply
Compact integrated hydrostatic supply unit, low pulsation
Rotary Axes / C-Axis
Type
Workholding Spindle; groove compensated air bearing
Radial load capacity
70 kg at 6.9 bar (radial)
Axial load capacity
228 N/μm
Radial stiffness
98 N/μm at 6.9 bar
Axial stiffness
< 15 nm
Motion accuracy radial
< 15 nm
Velocity control
< 10,000 rpm
Position control
0-3,000 rpm
Feedback Resolution
0.008 arcsec
Thermal Control
Integrated cooling
Interface
NanoGrip
Brochure Download
MODULES

Innolite platforms are designed to be modular

The work spectrum of the IL200 can be expanded with a large number of different modules. The following is a list of all modules, arranged according to their area of application

Configuration
Vision & Metrology
IL Ångström
Machine Periphery
Tool Management
Workpiece Management
